Thrust Vector Control Avionics Systems

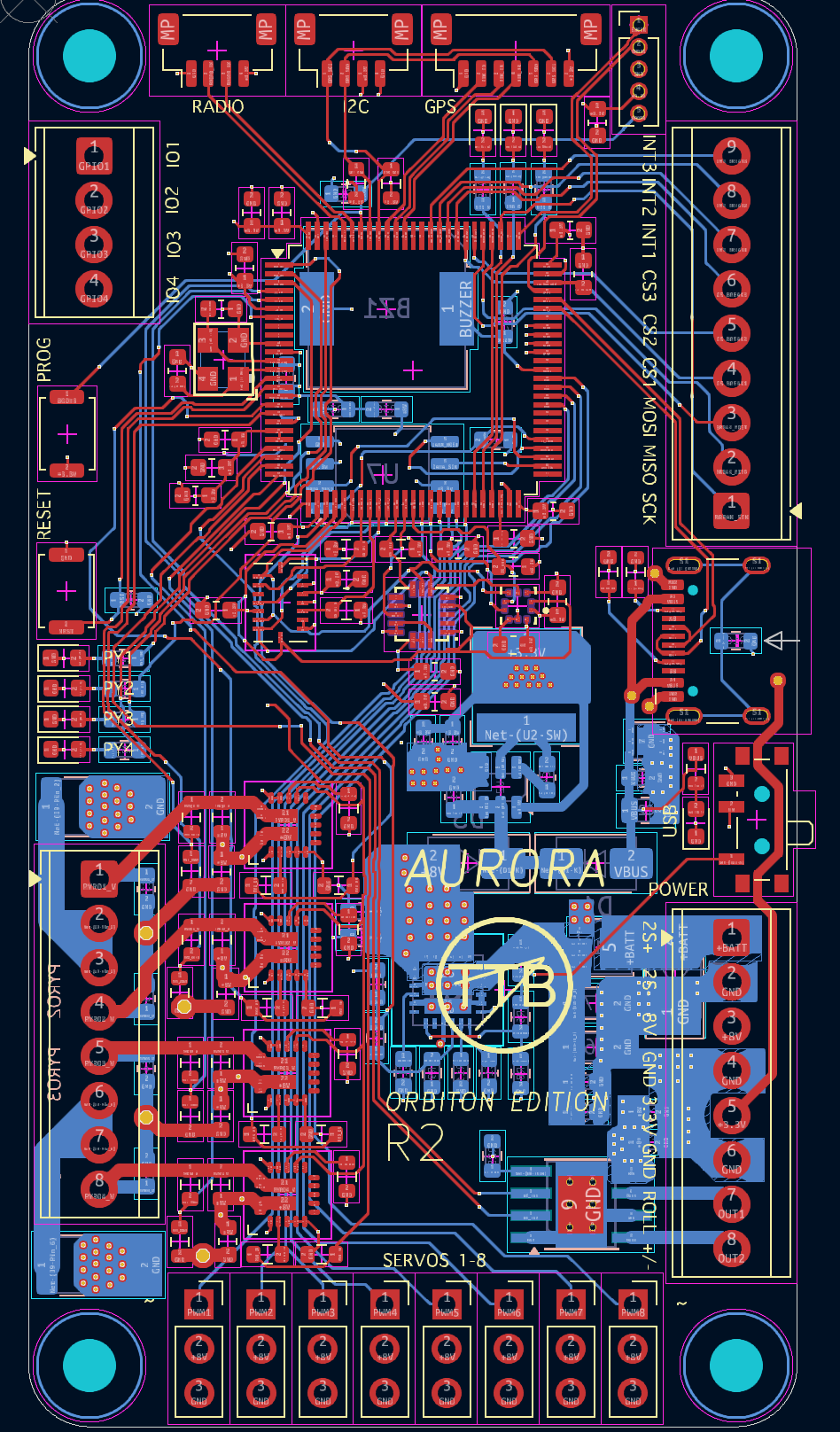

Aurora Orbiton Edition - Early 2025
Specs:
ST Microelectronics STM32H7 Processor (Up to 600MHz)
Bosch BMI055/088 IMU
BMP390L Barometer
H3LIS High-G Accelerometer
Flash chip datalogging
Up to 8 Servos
4 Load Driver Pyro Channels with continuity detection
TPS259830LNRGER Power management IC (20A, short circuit protection, current monitoring/current limiting, overvoltage/undervoltage lockouts)
Outputs for I2C devices, a radio device, GPS, and other IO
Reaction control wheel DC motor output
USB Type-C programming
Small form factor of 83x44mm
This PCB is not designed for production, but feel free to inquire if you think you could use Aurora Orbiton in your project.
Aurora PV1 - Late 2021
Specs:
ATMEL ATSAMD21G18A-AUT Processor
Bosch BMI055/088 IMU
TI-MS5607/11 Barometer
H3LIS High-G Accelerometer
SD Card Datalogging
Up to 3 Servos
2 Load Driver Pyro Channels with continuity detection
AP63301 Buck Converter (3A)
Outputs for I2C devices, a radio device, GPS, extra pyro channels
Small Form Factor of 30x64mm on a 4 Layer Board
Aurora DV5 - 2021
Specs:
ATMEL ATSAMD21E17A-AUT Processor
Bosch BMI088 IMU
TI-MS5611 Barometer
H3LIS High-G Accelerometer
SD Datalogging
2 Servos
Pyro
LED/Buzzer
AP63205 Buck Converter
Outputs for I2C devices, a radio device, and more
Small Form Factor of 30x57mm on a 4 Layer Board
On-board SWD connector for easy access to change bootloader (currently based on arduino TAU)
On-board USB connector for easy code uploading through the Arduino IDE or PlatformIO IDE
